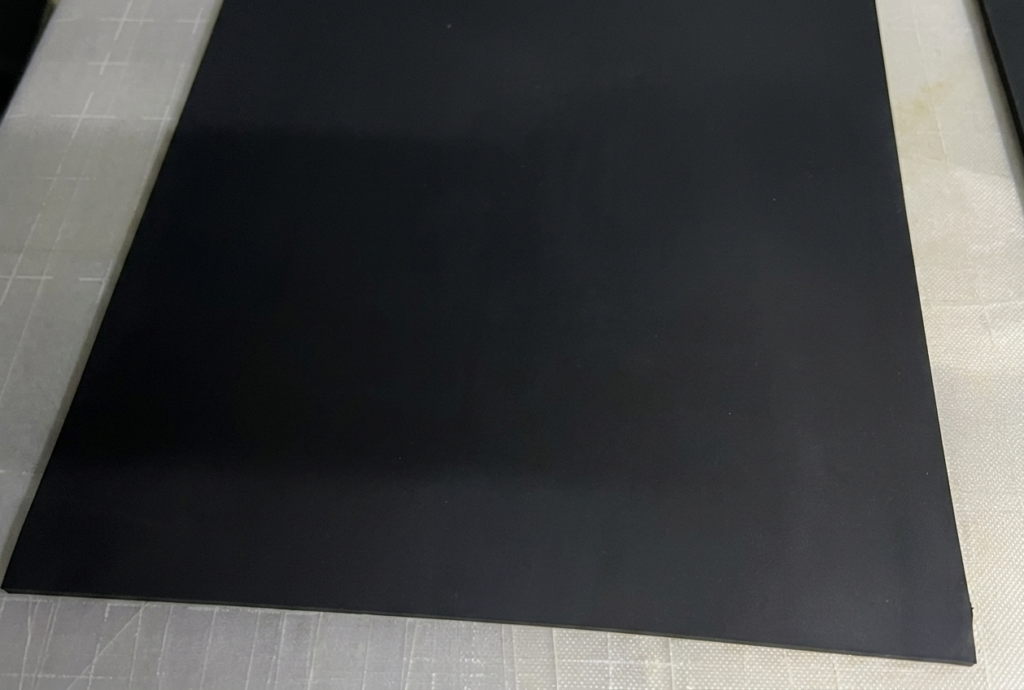

ESS40LO is 40-durometer low outgassing silicone sheeting that is specially formulated and processed to minimize the release of volatile compounds that could contaminate lenses, sensors, or electronics under vacuum and/or heat.
It meets ASTM E595 requirements and provides a superior gasket and sealing solution for aerospace, defense, electronics, optics, medical devices, and other critical applications.
This material is easy to die cut and comes in thicknesses from 0.010” to 0.500”, and in widths up to 36”.
Key Characteristics
- High temperature resistance up to 525ºF (525ºF intermittent)
- Low temperature resistance down to -85ºF
- Meets ASTM E595 outgassing requirements
- Total Mass Loss (TML) ≤1.00%
- Collected Volatile Condensable Material (CVCM) ≤ 0.10%
- Post-cured to ensure minimal volatile content and stability
- UV / ozone resistant
- Peroxide free, odorless, and tasteless
- FDA compliant per FDA Title 21 CFR 177.2600.
Physical Properties
- Specific Gravity (g/cc): 1.10
- Durometer (Shore A): 40+/-5
- Tensile Strength (psi): 1100
- Elongation (%): 900
- Tear (ppi, Die “B”): 200
Ordering Information
Contact ElastaPro for additional information.
