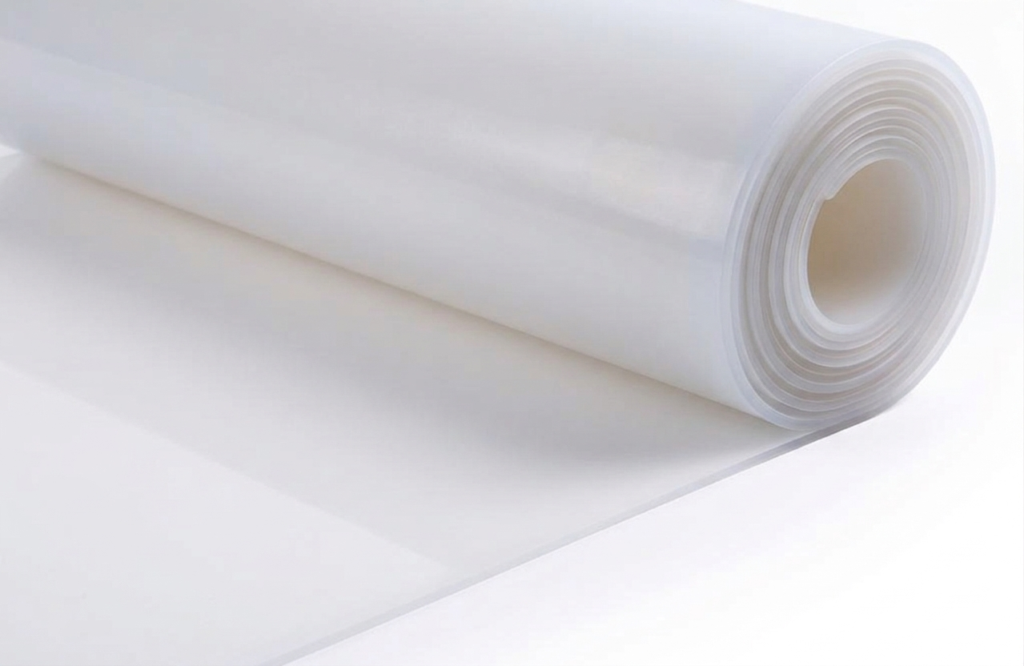

ESS40HC is 40-durometer medical grade silicone sheeting that meets USP Class VI, Pharmacopoeia, ISO 10993, and FDA Title 21 CFR 177.2600 requirements.
Healthcare Certification Detail
This material is designed for medical devices and applications for implantation up to 29 days in the human body.
It is easily die cut and provides a superior gasket and sealing solution. Choose thicknesses from .010” to .500”, widths up to 60”, and a gloss or matte finish.
Key Characteristics
- High temperature resistance up to 450ºF (500ºF intermittent)
- Low temperature resistance down to -80ºF
- Excellent for seals and gaskets
- Fabricated with high-quality raw materials
- No smell or odor
- Does not contain organic plasticizers
- Phthalate and peroxide free
- Safe for steam and gamma sterilization
- Specifications: USP Class VI, European Pharmacopeia, ISO 10993, and FDA Title 21 CFR 177.2600
Physical Properties
- Durometer (Shore A): 40 +/-5
- Tensile Strength (psi): 1100
- Elongation (%): 850
- Tear (ppi, Die “B”): 170
Ordering Information
This is a made to order product.
