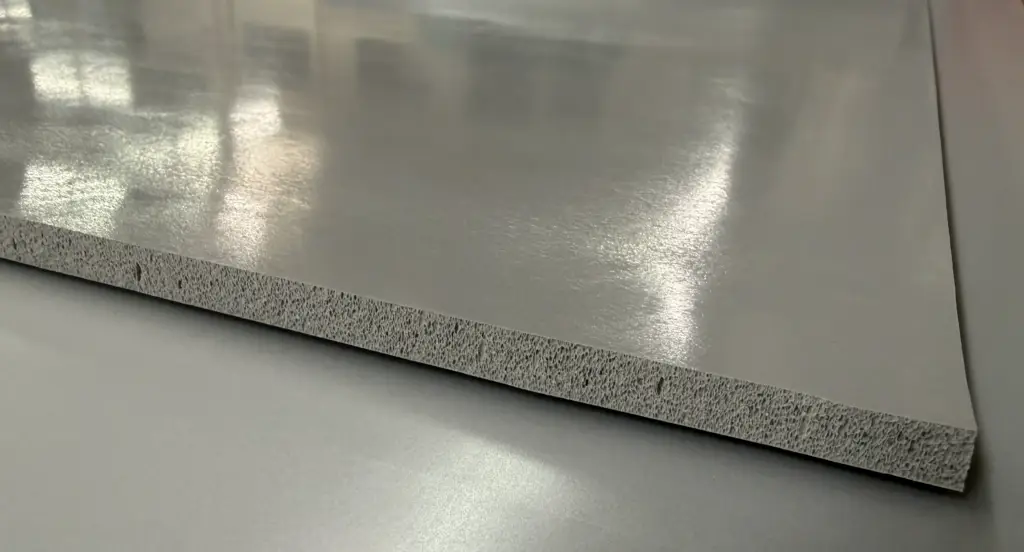

ESS12M is medium density silicone foam that meets AMS 3195 and UL 94V-0 requirements. It is grey in color and has a smooth finish.
This material is excellent for gaskets and has low compression set with high compressibility.
Key Characteristics
- High and low temperature resistance
- High compressibility
- Low compression set
- UV / ozone resistant
- AMS 3195
- UL 94V-0
Physical Properties
- Density, lbs/cu. in.: .013
- Compression deflection, psi: 7-11
- Hardness: 15±5 Shore C
- Compression Set: 1%
- Water Absorption, %: <5
- Temperature Range ºF: -55 to 400º
- Tensile Strength, psi: >36
- Elongation, %: >70
- Flammability: V0
- Permittivity: 1.39 C²/(N·M²)
- Dielectric Strength: 1.6 KV/mm
- Flame Diffusion Index: <25
- Smoke Density (4min/Ds): <50
- Gas Emission Level: PASS
Ordering Information
Contact ElastaPro for additional information.
